Our offering
- Low-wear quality seals and moulded parts out of EPDM
- According to the European DIN standard
- Many resistances
- Plate or rolled goods
- Seamless XXL format
- Individual cut
- From quantity 1 up to series production
- High Quality
Our available EPDM-materials
A-KJ 50-00
Technical Data Sheet
Qualities
- EPDM quality, peroxide cured
- makrolon and prexiglas resistant
- conform with FDA 21§177.2600
- compliant with the French Drinking water approval (CLP certificate)
- complies with VW 2.8.1 G65 (at 130 °C) and DBL 5556.30
- short time temperature resistant to 150 °C
Delivery forms
| The material is available in rolls. | |
| Length | on request |
| Width | 3,200 mm |
| Thickness | on request |
| Other sizes and cut-to-size pieces upon request. |

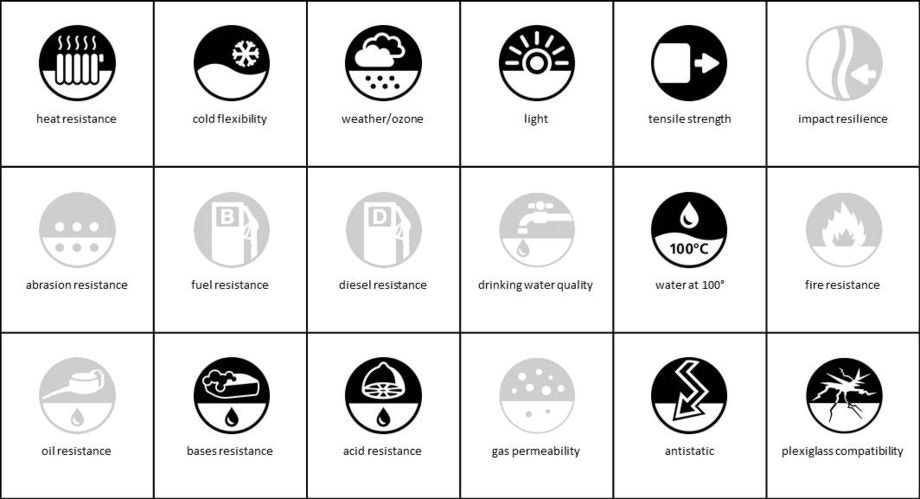

A-KL 65-00
Technical Data Sheet
Resistances
Qualities
- EPDM quality, peroxide cured
- makrolon and prexiglas resistant
- conform with FDA 21§177.2600
- compliant with the French Drinking water approval (CLP certificate)
- complies with VW 2.8.1 G65 (at 130 °C) and DBL 5556.30
- short time temperature resistant to 150 °C
Delivery forms
| The material is available in rolls. | |
| Length | on request |
| Width | 3,200 mm |
| Thickness | on request |
| Other sizes and cut-to-size pieces upon request. |
EPDM 65 peroxid
Technical Data Sheet
Resistances
Qualities
- EPDM quality, peroxide cured
- makrolon and prexiglas resistant
- conform with FDA 21§177.2600
- compliant with the French Drinking water approval (CLP certificate)
- complies with VW 2.8.1 G65 (at 130 °C) and DBL 5556.30
- short time temperature resistant to 150 °C
Delivery forms
| The material is available in rolls. | |
| Length | on request |
| Width | 3,200 mm |
| Thickness | on request |
| Other sizes and cut-to-size pieces upon request. |

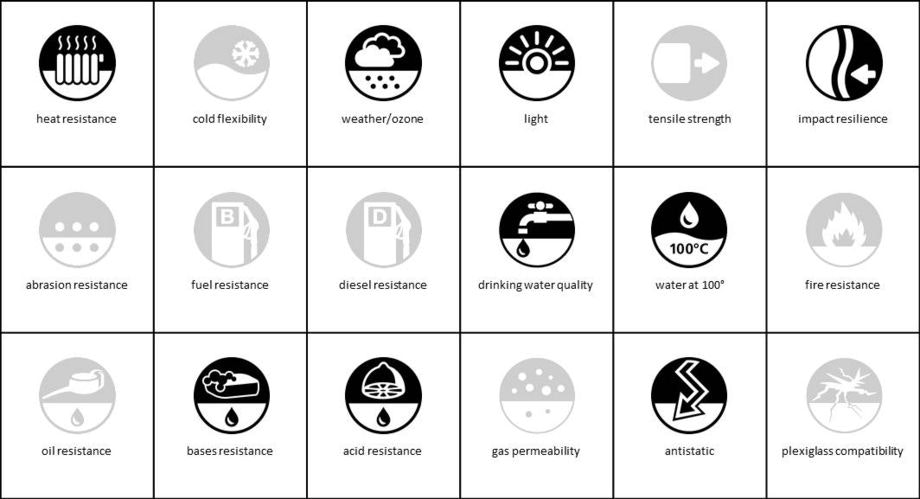

A-KT 70-00
Technical Data Sheet
Resistances
Qualities
- EPDM material for drinking water applications (ethylene propylene diene monomer rubber)
- Certification of KTW and DVGW W270
- WRAS certificated
- PAK content in accordance with Kat. 2 of ZEK 01 2-08)
- Peroxide cured
Delivery forms
| The material is available in rolls. | |||
| Length | 1,000 mm | 5,000 mm | 10,000 mm |
| Width | 1,400 mm | ||
| Thickness | 2 mm | 3 mm | 5 mm |
| Other sizes and cut-to-size pieces upon request. |

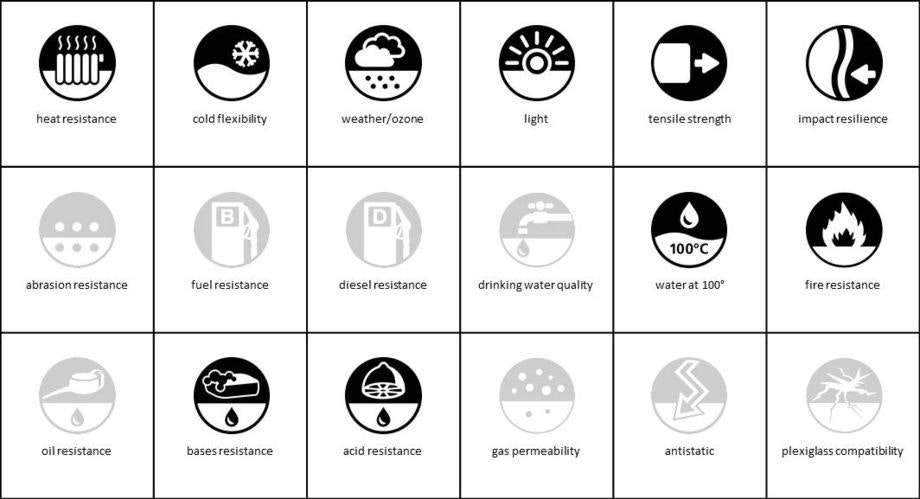

A-KX 55-15
Technical Data Sheet
Resistances
Qualities
- Insulating blanket EPDM-material (ethylene propylene diene monomer rubber)
- Certificated for electrical insulating blankets according DIN EN 61112 A,Z
- Salmon according to RAL 3022
- PAK content in accordance with GS-regulations ZEK 01.2-08
- Nitrosamine free and halogene-free
Delivery forms
| The material is available in rolls. | |||
| Length | 1,000 mm | 5,000 mm | 10,000 mm |
| Width | 1,000 mm | marked with 2 Vulkanetten® | |
| 1,200 mm | marked with 3 Vulkanetten® | ||
| Thickness | 1 mm | 1.6 mm | |
| Other sizes and cut-to-size pieces upon request. |
