S 3301/5-5-2,1-L/SW-GL

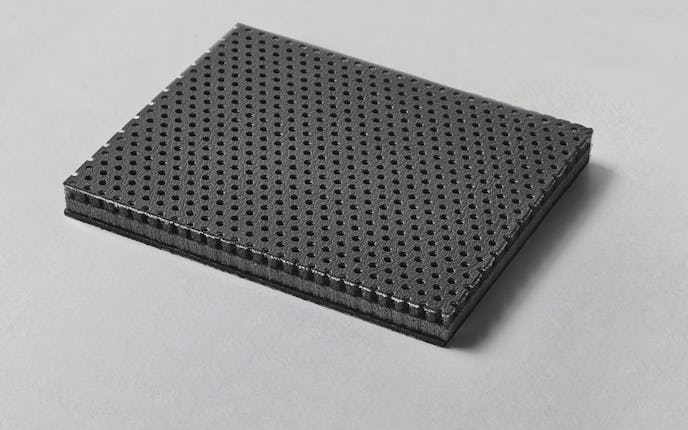

S 3301/5-5-2.1-L/SW-GL is a material combination of a polyethylene foam (thickness approx. 5 mm) covered with a perforated composite (thickness approx. 5 mm, large perforation) made of a polyurethane foam (polyester) and a PVC artificial leather as a protective and decorative surface, colour black, similar RAL 9011, laminated on a bitumen heavy foil. Self-adhesive equipment with a high-quality and moisture-resistant adhesive system based on modified acrylate.
Main function
Airborne sound insulation
Applications
Vehicle cabs, sound capsules, mechanical engineering, interior paneling etc.
Processing
The surface must be carefully cleaned from dust, grease, oil and water.
Full area adhesion has to be insured. The adhesion strength is directly dependent from the processing pressure. The material has to be pressed in firmly, e.g. using a feed roll.
Processing temperature: 18 - 25 °C
Options
Different material thicknesses, as well as surface colours of artificial leather are available on request.
Transparent protection foil on the surface, must be removed after the assembly!
Storage conditions
Dry at temperatures between 18 - 25 °C
Max storage time: 6 months
Delivery forms
Standard boards 1,000 x 1,600 mm untrimmed,
other sizes and cut-to-size pieces upon request.
