Thermal and Acoustic Insulation S 3806/...-2,1-10-2,1-...

S 3806/...-2,1-10-2,1-...

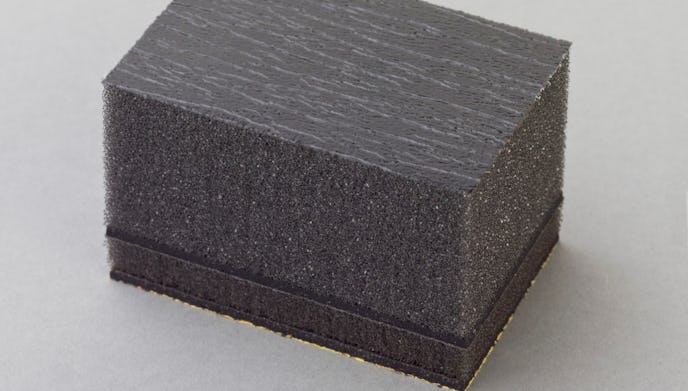

S 3806/...-2.1-10-2.1-... is a composite of two layers of polyurethane foam (polyether), laminated on bitumen heavy foil, surface compaction with a stamped rhomb structure (-RG) or surface skin formation with a polyurethane foil (-VH). Self-adhesive equipment with a high-quality adhesive system based on acrylate.

Main function

Airborne sound absorption (absorption) and airborne sound insulation, structure-borne sound insulation (anti-drumming)

Applications

Sound insulating cabins, vehicle cabs, mechanical engineering etc.

Processing

The surface must be carefully cleaned from dust, grease, oil and water.
Full area adhesion has to be insured. The adhesion strength is directly dependent from the processing pressure. The material has to be pressed in firmly, e.g. using a feed roll.

Remove the protective foil after installation!

Processing temperature: 18 - 25 °C

Specials

Surface resistant to penetration and solubilization of / by oil, gasoline, diesel, water

Storage conditions

Dry at temperatures between 18 - 25 °C
Max storage time: 3 months

Delivery forms

Standard boards 1,000 x 1,600 mm untrimmed,
other sizes and cut-to-size pieces upon request.
