Sonit® Alu/Butyl 1,6

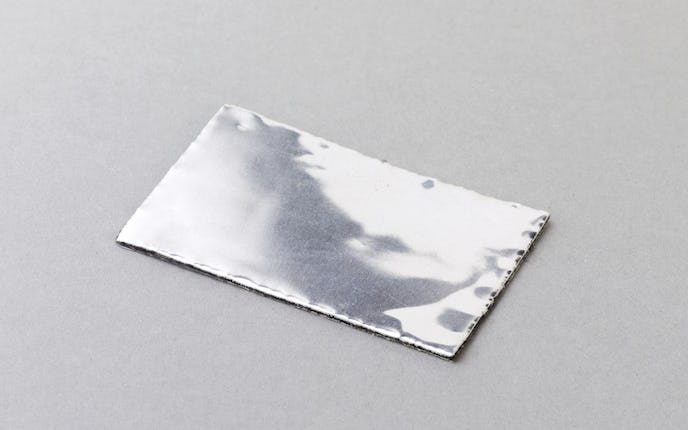

Sonit® Alu/Butyl 1.6 is a lightweight, flexible soft material from a self-adhesive damping mass based on butyl rubber without reinforcement, laminated with an aluminium foil (thickness 150 µm). The butyl mass is filled with minerals and set high thixotropic.
Main function
Airborne sound insulation and sound deadening sheets,
especially of moulded parts
Applications
Car body and vehicle construction, household equipment, ship building, mechanical engineering, air ducts etc.
The material can be applied to oiled (white corrosion protection oil) surfaces without prior cleaning and withstands standard degreasing and painting processes.
Processing
The surface must be carefully cleaned from dust, grease and water.
Full area adhesion has to be insured. The adhesion strength is directly dependent from the processing pressure. The material has to be pressed in firmly, e.g. using a feed roll.
Cold bonding should not take place under 20 °C material temperature.
Storage conditions
Dry at temperatures between 18 - 35 °C and humidity max. 50%
Stackability: max. 100 parts
Shelf life
3 months (body or paint shop application)
6 months (final assembly application)
When installed, the product can withstand a humidity of
max. 95%.
Delivery forms
Standard boards approx. 1,000 x 1,030 mm, tolerance ± 1% conditionally.
Other sizes and cut-to-size pieces upon request.
Reliability
The product is not subject to labeling by EC directives /
Ordinance on Hazardous Substances
